    M204E infrared sensors

    Maximum mounting height:3m           sensing distance in front:0.2m-2m
    Output hold time: about 2 seconds         output contacts: passive normally open contact DC50V 0.1A        Power Supply:AC/DC12-36V
    Size:221(L)*74(W)*35(H)mm

    M204E infrared sensors
    M204E infrared sensors
    • CAD diagram
    • Diagram1CADdownload
    • Manual book
    • M204E infrared sensorsPDFdownload
    • Manual book
    • M204E infrared sensorsPDFdownload
    Detailed Products

    This product is an active infrared sensor.  Electron Optics tube infrared transceiver Imported from Japan, sensing range adjustment flexibility, precise distance control. Anti-interference ability, high sensitivity, low malfunction, you can easily make  for a variety of supporting automatic doors, particularly suitable for narrow space or street entrance frequent occasions of human walking.
    Maximum mounting height:3m           sensing distance in front:0.2m-2m
    Output hold time: about 2 seconds         output contacts: passive normally open contact DC50V 0.1A        Power Supply:AC/DC12-36V
    Size:221(L)*74(W)*35(H)mm
    1, the appearance of high-grade, international structure and technology, precision optics ytterbium head, structural adjustment device of advanced design.
    2,  use of microprocessor controlled , adopts international advanced anti-jamming and sun screen processing technology, strong anti-interference, induction reliable .

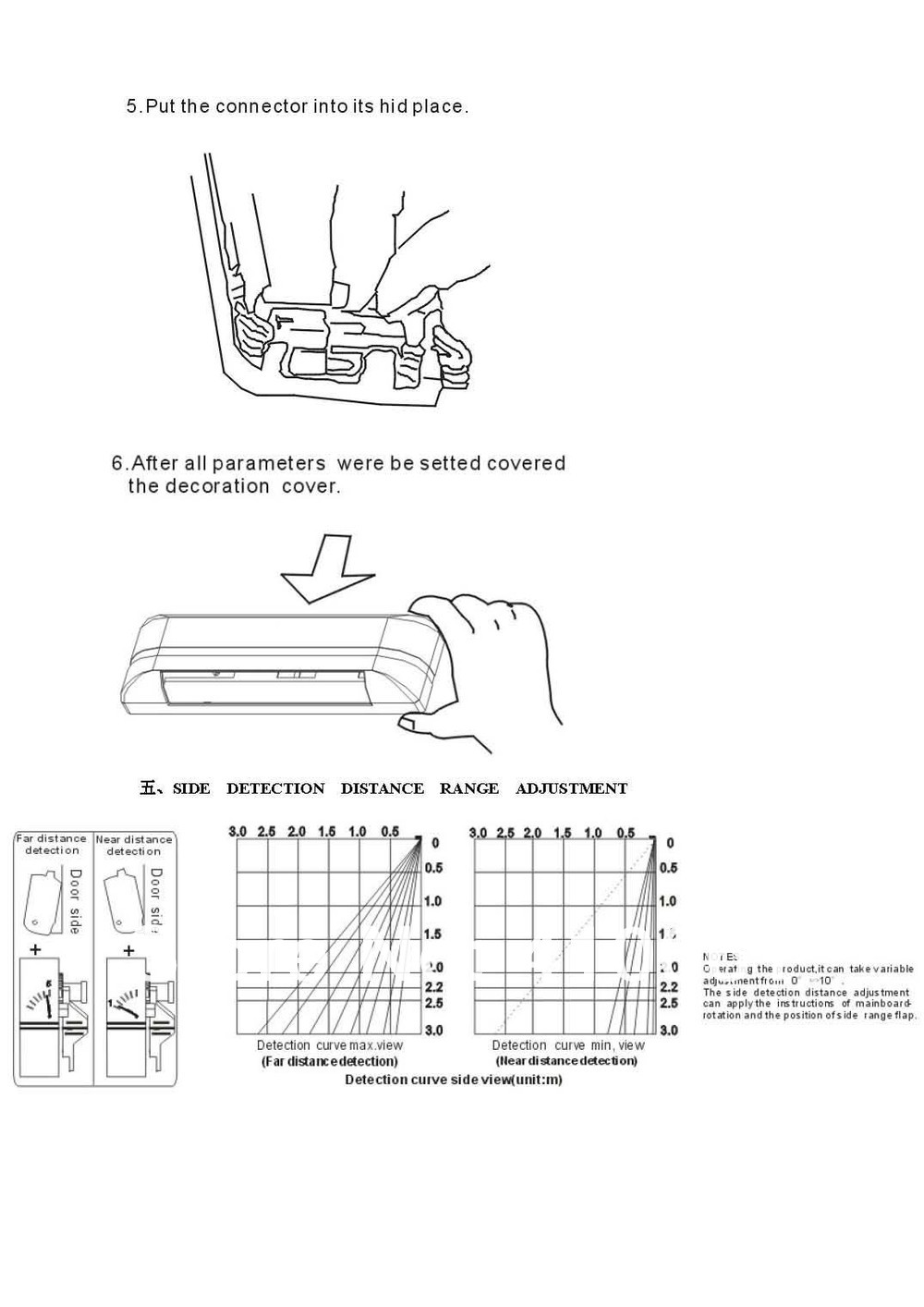

    3, by adjusting the scope of the subject and the side flap, and then select the setting switch with sensitivity, can be achieved in front sensing distances accurate at adjustment.






    CNB-204E Infrared prensence presensor__1.jpgCNB-204E Infrared prensence presensor__2.jpgCNB-204E Infrared prensence presensor__3.jpgCNB-204E Infrared prensence presensor__4.jpgCNB-204E Infrared prensence presensor__5.jpgCNB-204E Infrared prensence presensor__6.jpgCNB-204E Infrared prensence presensor__7.jpgCNB-204E Infrared prensence presensor__8.jpgInternational structure technology, high accuracy detection ability of anti -


    High sensitivity, low maloperation from regulation accuracy good, very suitable for


    specific occasions, the built environment


    Using microprocessor control, modulated infrared light, seven to seven, the level of the


    vertical adjustments


    Input voltage: AC / DC 12 V ¡Á 110V


    Size: 221 mm (L) * 74 mm (W) x 35 mm (H)
