    M-203F Five-function   selector

    By  password to switch.  for easy control of automatic doors open, one-way, full-lock, semi-open and normal induction five kinds of switching function.
    Switching Power Supply :12-36V             Password: four initial password is 1234 Password Reset: Press the reset button to keep 40s
    Dimensions: 113 (length) * 63 (W) * 20 (H) mm

    M-203F Five-function   selector
    M-203F Five-function   selector
    • CAD diagram
    • Diagram1CADdownload

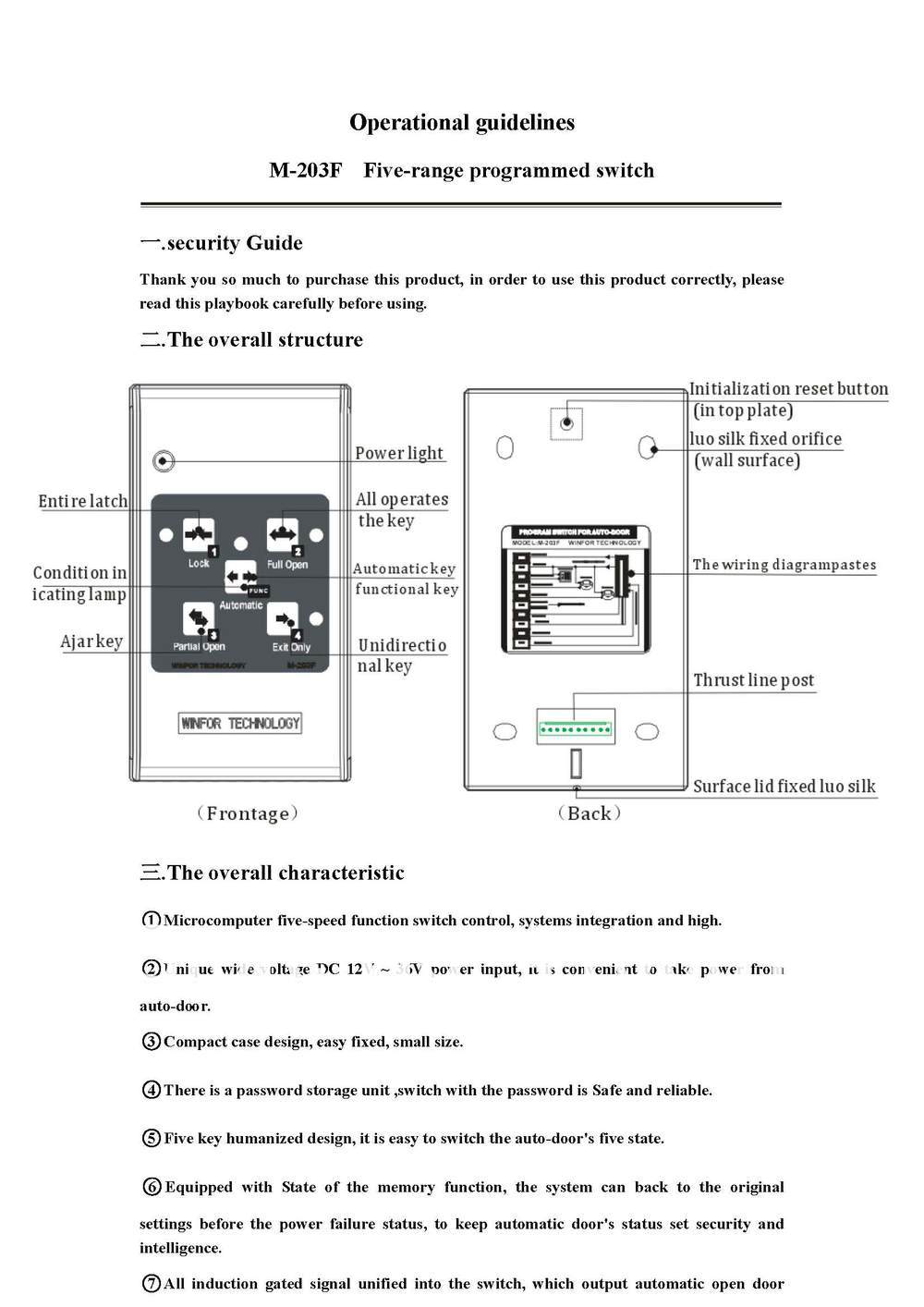

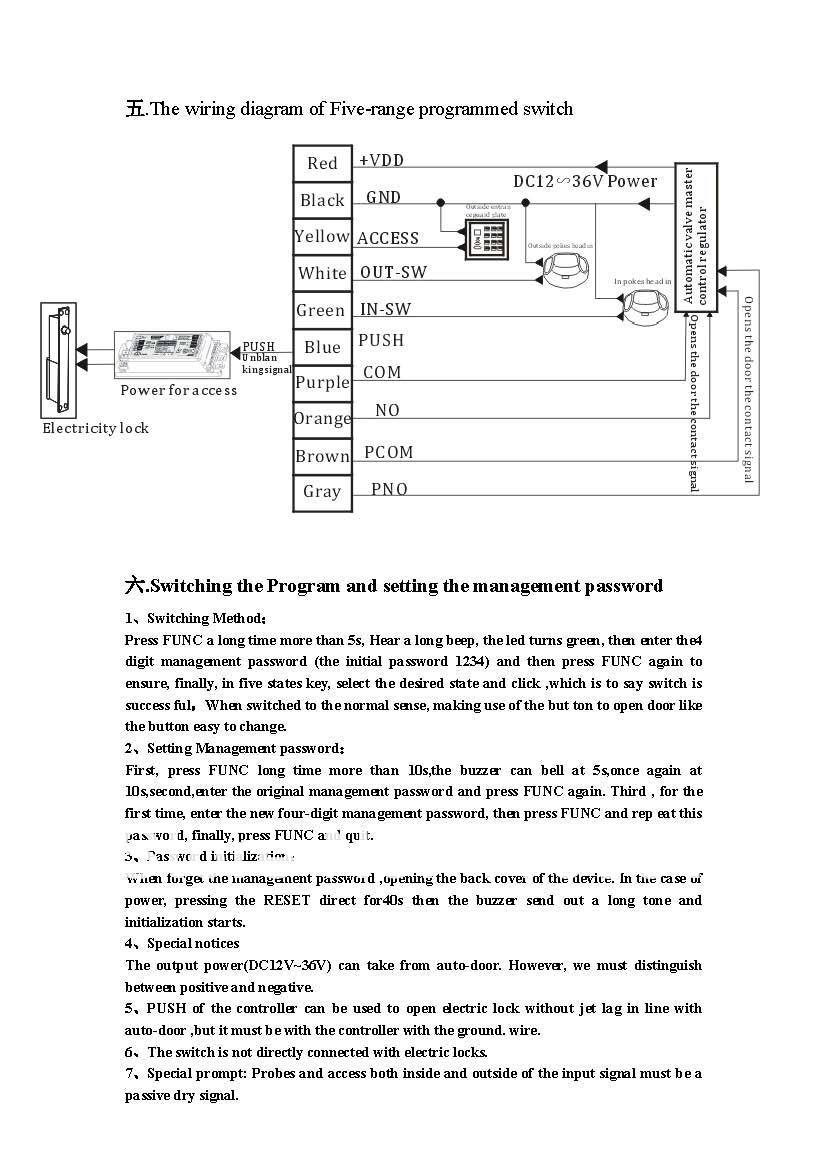

    • Manual book
    • M-203F Five-function selectorPDFdownload
    • Manual book
    • M-203F Five-function selectorPDFdownload
    Detailed Products
    By  password to switch.  for easy control of automatic doors open, one-way, full-lock, semi-open and normal induction five kinds of switching function.
    Switching Power Supply :12-36V             Password: four initial password is 1234 Password Reset: Press the reset button to keep 40s
    Dimensions: 113 (length) * 63 (W) * 20 (H) mm
    with password storage unit, with the password to  function switch, function switch safe and reliable. All door sensors, control signals into a unified program switch, the switch output contact, by the program to control the automatic doors opened. A state memory unit, the system can re-call and automatically revert to the original settings during  power outage ,power failure state,power on, keep security  and intelligent.



    Main Characteristic

    Adopting five- range of switch function of microcomputer with high integration.

    With DC 12V ~ 36V power input, it is convenient to take power from auto-door unit.

    Featured with exquisite cover, compact size and easy to be fixed.

    With password storage unit , function switch against passwords , safety and reliability.

    Function switch with 5 control buttons.

    With memory function in case of power-down.Antodoor maintains safety and intelligence quality.

    Instructions with indicator light o confirm the validity operation.

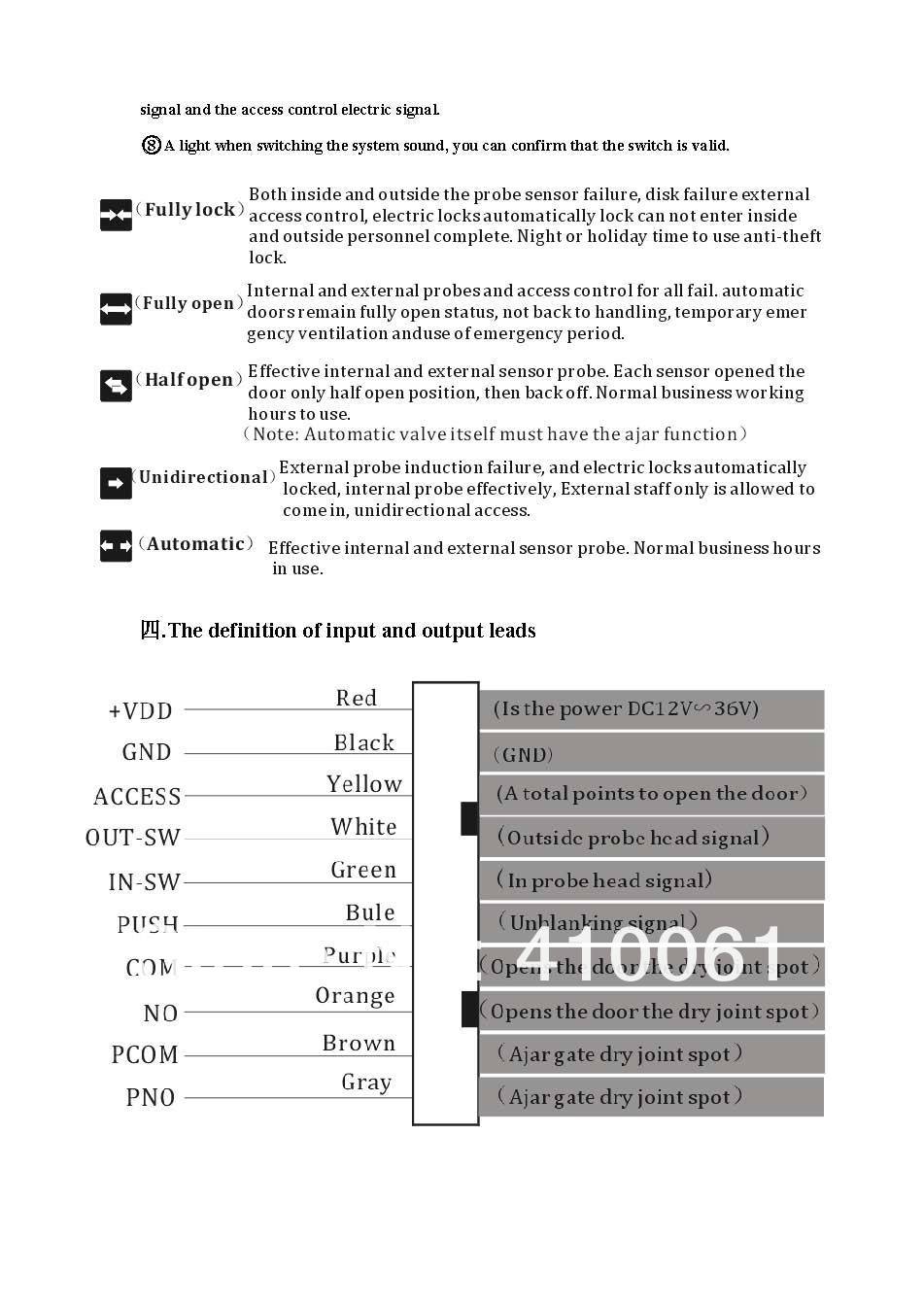

      Fully lock  : All probe and access controller are lose effectiveness. electric lock locked automatically. People inside and outside can not enter in. Be used for preventing thieves at night or on holidays periods.

      Fully open  :All probe and access controller are lose effectiveness. Door keeps fully open. For emergency using.

      Half open  : External and internal probes are effective. Door maintains half-open and shut back. Working hours with normal business.

      Unidirectional  : External probe is lose effectiveness and electric lock locked automatically while external access controller and internal probe are available.Only insider can get in by swiping card. Internal probe is effective,people can get out.Be used for clearing up a gathering place .

      Automatic  : Internal and external probe are effective .Working hours with normal business



    Specail Note

    DC12V-36V Power can be supplied from the sliding door unit

    Time difference can be produced by connecting the PUSH SIGNAL CONTACT of this product with PUSH SIGNAL CONTACT of power assess.( Should be connect with same GND wire)

    Direct connection with electric lock is not allowed.

    The input signal of internal/external probe and access controller should be passive contact signal







    Packaging Details

    Unit Type:
    piece
    Package Weight:
    0.300kg (0.66lb.)
    Package Size:
    11cm x 6cm x 3cm (4.33in x 2.36in x 1.18in)
