    M212E Electric bolt

    With the access control system can be installed in a variety of  frameless glass doors.
    Security Type: Relay automatically open
    Working voltage: DC12V Working Current: 1200mA stable 120A           Lock Delay Start: 0,3,6 seconds adjustable
    Cylinder Dimensions: 14.5 outstretched (length) * 12 (diameter) mm                       Lock Size: 160 (length) * 45 (W) * 40 (H) mm

    M212E Electric bolt
    M212E Electric bolt

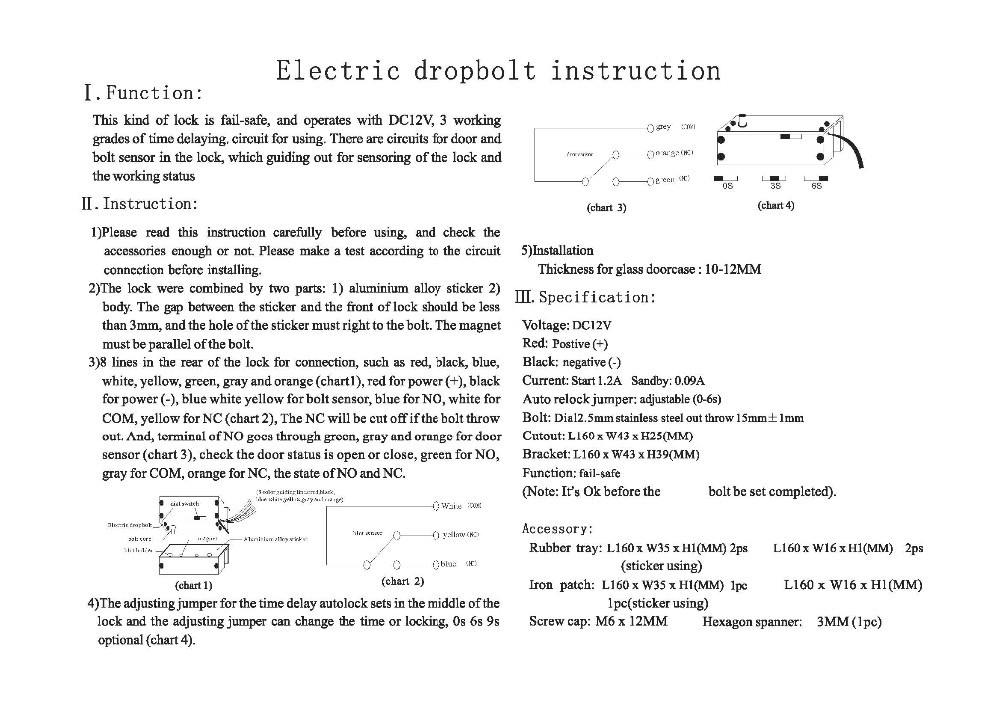

    Detailed Products

    212E Electric bolt with lock folder

    With the access control system can be installed in a variety of  frameless glass doors.
    Security Type: Relay automatically open
    Working voltage: DC12V Working Current: 1200mA stable 120A           Lock Delay Start: 0,3,6 seconds adjustable
    Cylinder Dimensions: 14.5 outstretched (length) * 12 (diameter) mm                       Lock Size: 160 (length) * 45 (W) * 40 (H) mm
    Dual-current protection, low power consumption, low temperature durable, but with a lock detection signal and the door Magnetic  number :eight wire configuration.

    The product application

    the product use with access controller,to be installed on the frameless glass door.

    the technology parameter

    operating voltage :DC 12V starting current:1200mA

    Static current: 120 ma

    operation type: Blackout unlock

    the overall characteristic

    dual current protection,low power consumption ,low operation temperature.

    besides,it has detect function for lock signal and magnetic signal with 8p in wire.

    appearance dimensions

    lock core bounce:14.5*12mm

    apperance:160*45*40mm

    M-212E Electric bolt wih lock folder

    Packaging Details

    Unit Type:
    piece
    Package Weight:
    1.000kg (2.20lb.)
    Package Size:
    16cm x 5cm x 4cm (6.30in x 1.97in x 1.57in)
