M227 Movable Safety Curtain


Type of light: Infrared Operating   Voltage: DC12 ~ 30V Dimensions: 750 (lL) × 42 (W) × 38 (H) mm
Detection Area: 100 to 2500mm (still mode): 500 to 2500mm (move mode)
Scan range settings: mechanical adjustment wheels from 1500 to 2500mm (triangulation)


Details
This product's main function is to prevent the door touches to any object, person or animal: also be used as a boot opening. Using the background suppression, this light curtain can be moved together with the door or rotate, not self-inductance. Appearance of high-grade, compact, scanning range adjustment no need to use any tools for installation and adjustment, from the mounting bracket can be precisely set the angle and angle data, the sensing range can be easily adjusted by the new round of adjustment.

Type of light: Infrared Operating   Voltage: DC12 ~ 30V Dimensions: 750 (lL) × 42 (W) × 38 (H) mm
Detection Area: 100 to 2500mm (still mode): 500 to 2500mm (move mode)
Scan range settings: mechanical adjustment wheels from 1500 to 2500mm (triangulation)


Applicable to any   automatic doors. Especially the revolving door ,sliding automatic doors. Strong anti-Interference ability, can not be influenced by the surrounding environment (snow and water)      , can be filtered back noise.

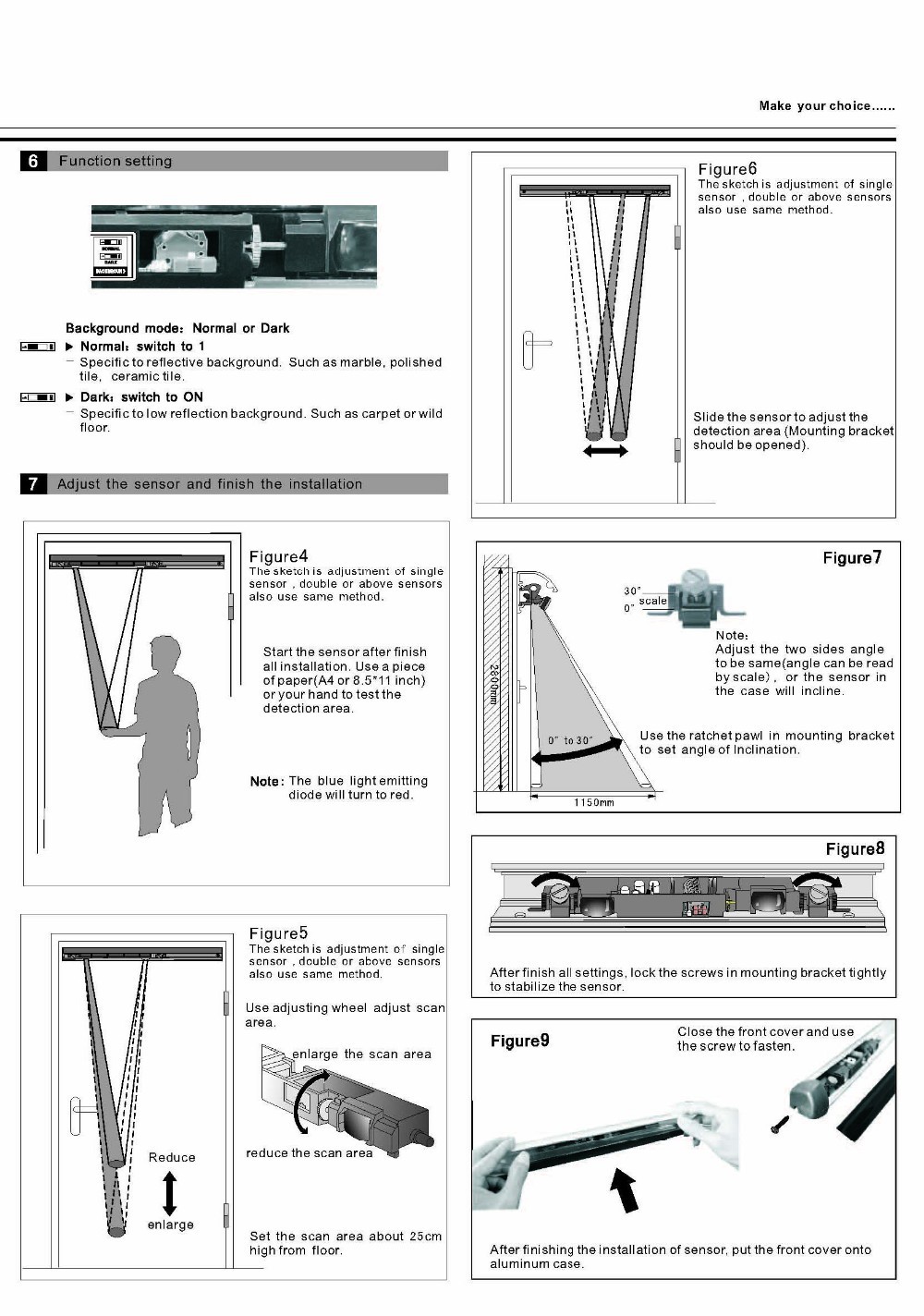

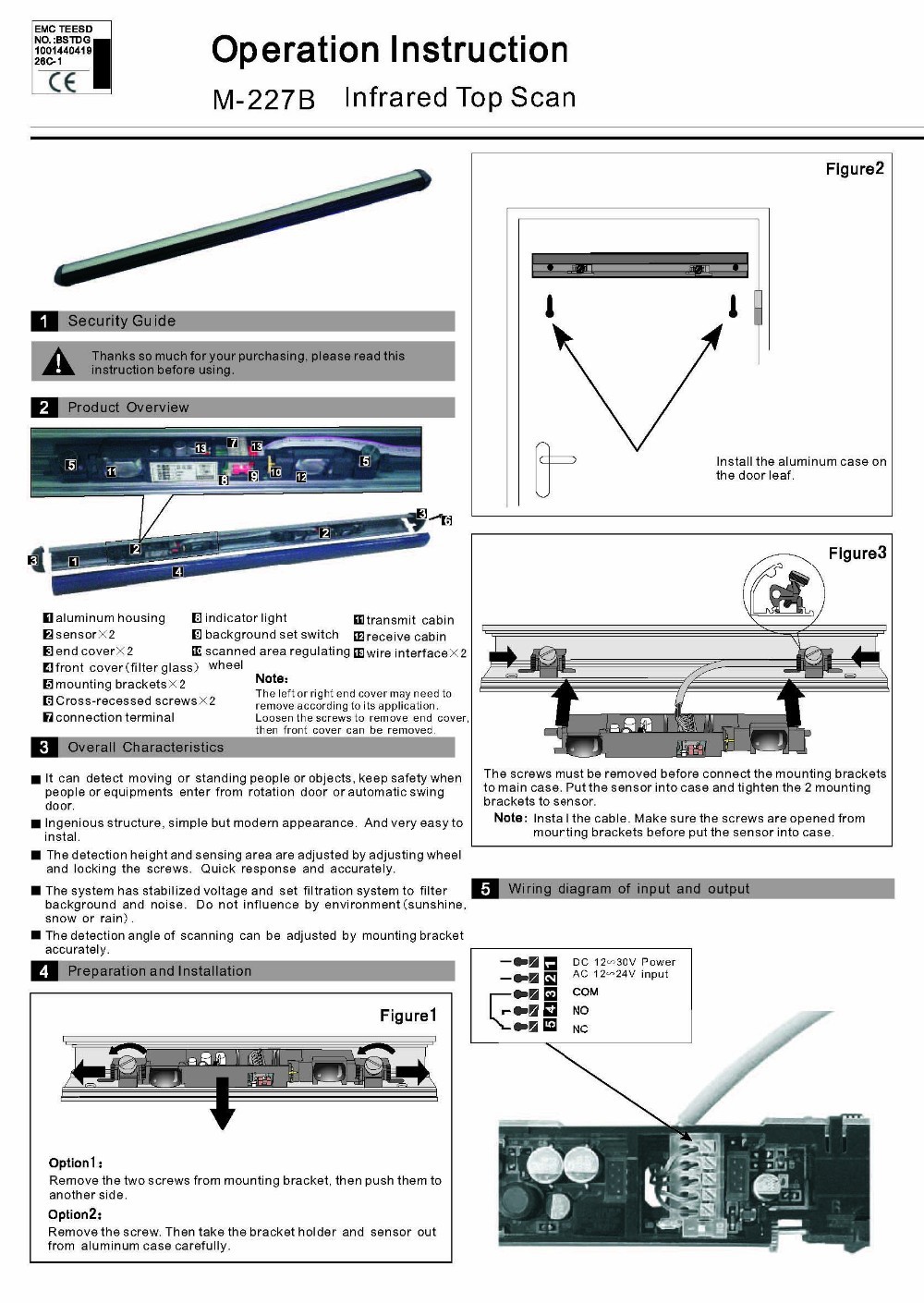

M-227B  Infrared Top Scan_01M-227B  Infrared Top Scan_.._1M-227B  Infrared Top Scan_.._2

Packaging Details

Unit Type:
piece
Package Weight:
0.830kg (1.83lb.)
Package Size:
16cm x 21cm x 11cm (6.30in x 8.27in x 4.33in)
