[MW]S250
[MW]S250
Details
[MW]S250

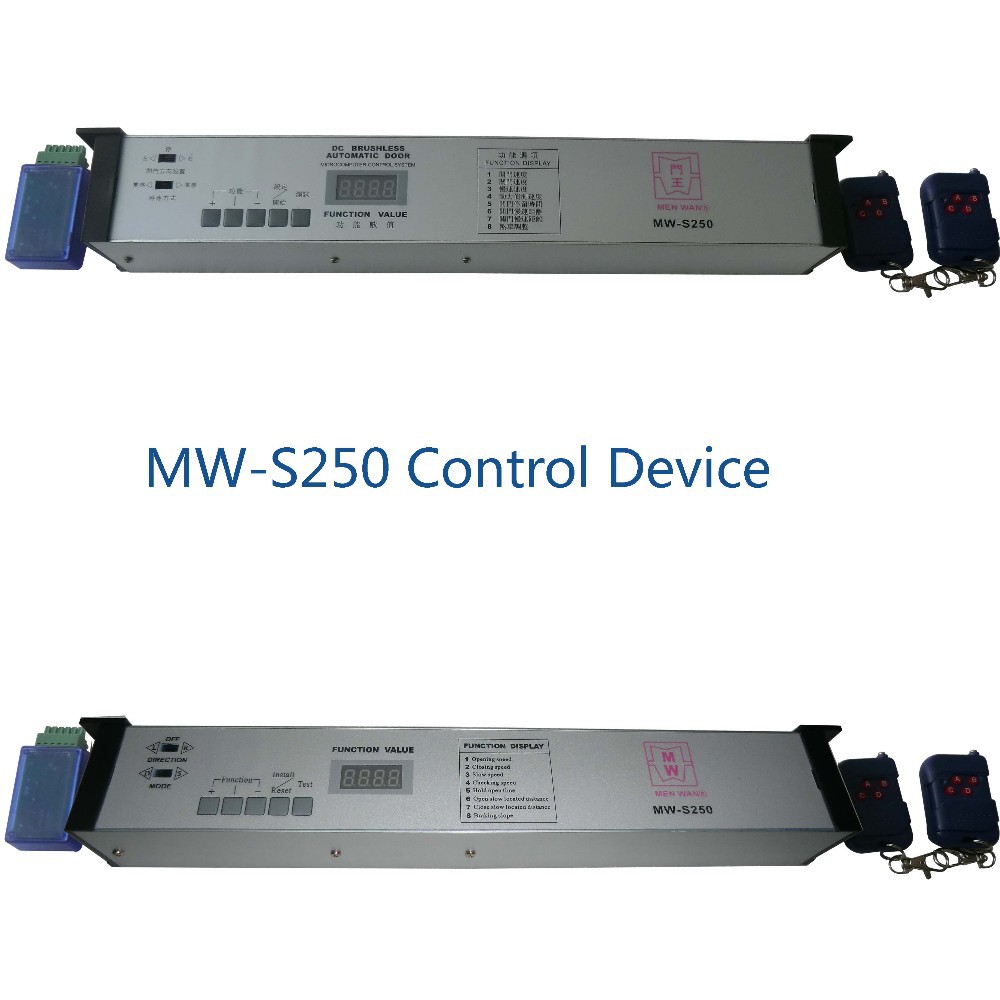

S250 Automatic Sliding doors Control Device microprocessor
C-DEVICEMENWAN

 automatic doors has different feature from  other manufacturer.

1. All door function built in control device.
2. Unique designed tension pulley E-lock.
3. Durable advanced nylon roller for long lasting, reliable service
4. DC brushless motor for heavy door, strong power&low noice
5. Remote control:   A:close&lock B:one way C:normal open D:half open
A&B:automatic
6. Elegant and graceful looks , economy and durability, excellent in quality


Model

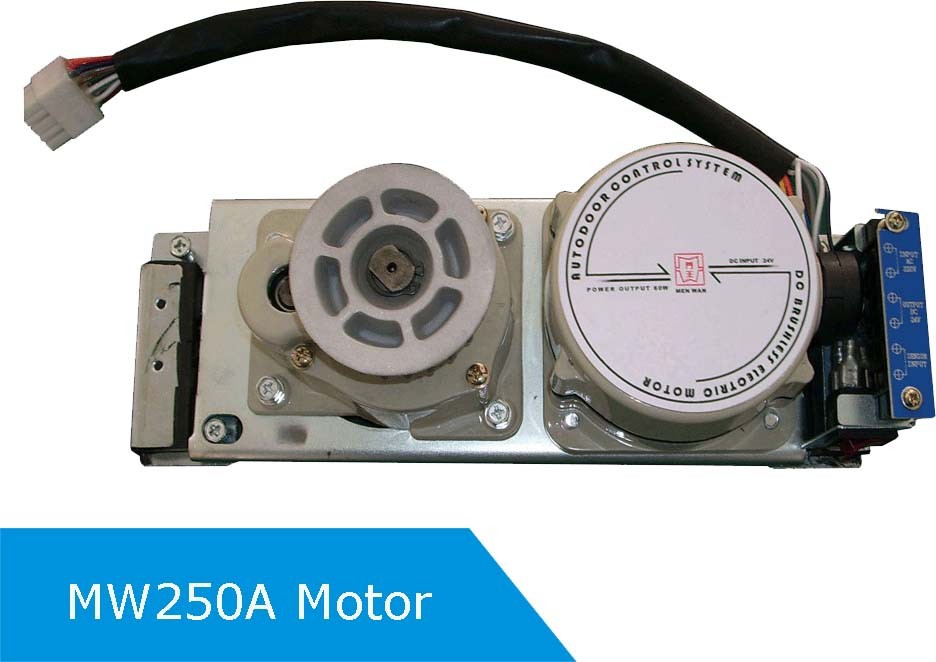

MW-DCS250- Motor

Sliding method

Single leaf

Double leaf

Door leaf weight

 Below 180Kg

 Below 150Kg×2

Door leaf width mm

700  ---1500

( 700  --1250  )×2

Driving beam width(mm)

1400   ---3000

2800   ---5000

Opening speed

200   ---500mm/sec

Closing Speed

200  ---400mm/sec

Door holding time

1  ---20sec

Controller

Microcomputer proccessor

motor

DC24V60W brushless motor

Consume power

70W

Pc voltage

AC200  ---240V  50Hz  /   AC110V

Temperature around

-20   ---50

Basic action

AC→ON→open  slowly→stop slowly→close→close quicly→brake→close slowly→push→air-tight(close state)

250trackdoor



DC24V60W brushless motor2m2mm22m
