M-206E The new card reader  password

Rated operating voltage:                     DC12V±3%

Quiescent current:                          35mA

Action current:                             5omA

 Storage capacity:                  1000 standard user(ID card)

Open password:                            A public password

The Interval time of open lock and auto-door:    400ms

The reading distance of card:                  20~100mm

Environment temperature :                   -10C~70C

The tape of user card:               EM or EM compatible card

Appearance dimension:                113(L)x63(W)x20(H)mm

Details

M-206E The new card reader installation password__2.jpgM-206E The new card reader installation password__3.jpg

Operating instructions

M-206E The new card reader installation password





1-Safety instructions



Thanks for purchasing this product, in order to use the product properly , please read this operations guide before using.



2-Perating list

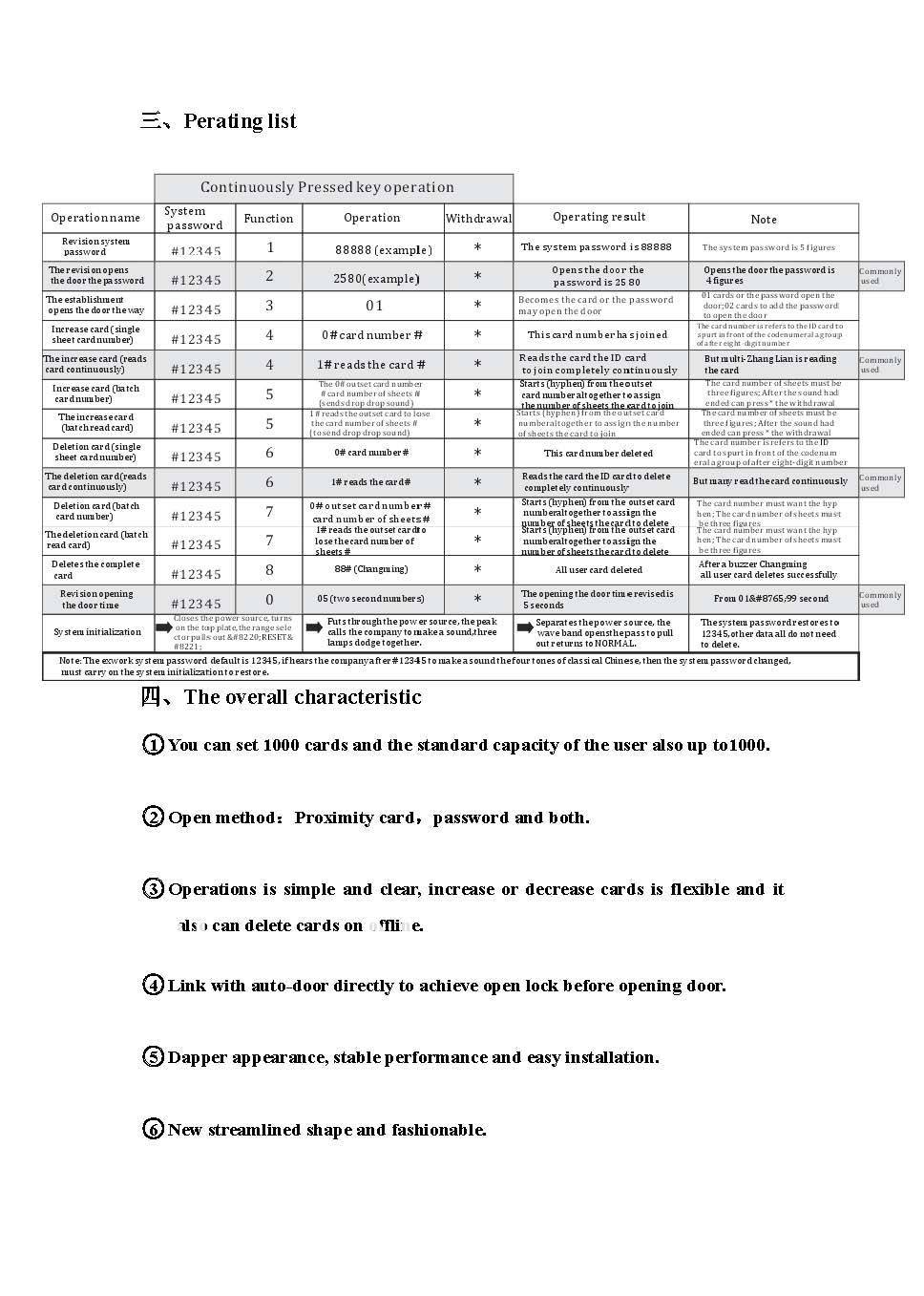

3-Perating list

4-The overall characteristic

-1You can set 1000 cards and the standard capacity of the user also up to1000.



-2Open method  Proximity card password and both.



-3Operations is simple and clear, increase or decrease cards is flexible and it also can delete cards on offline.



-4Link with auto-door directly to achieve open lock before opening door.



-5Dapper appearance, stable performance and easy installation.



-6New streamlined shape and fashionable.

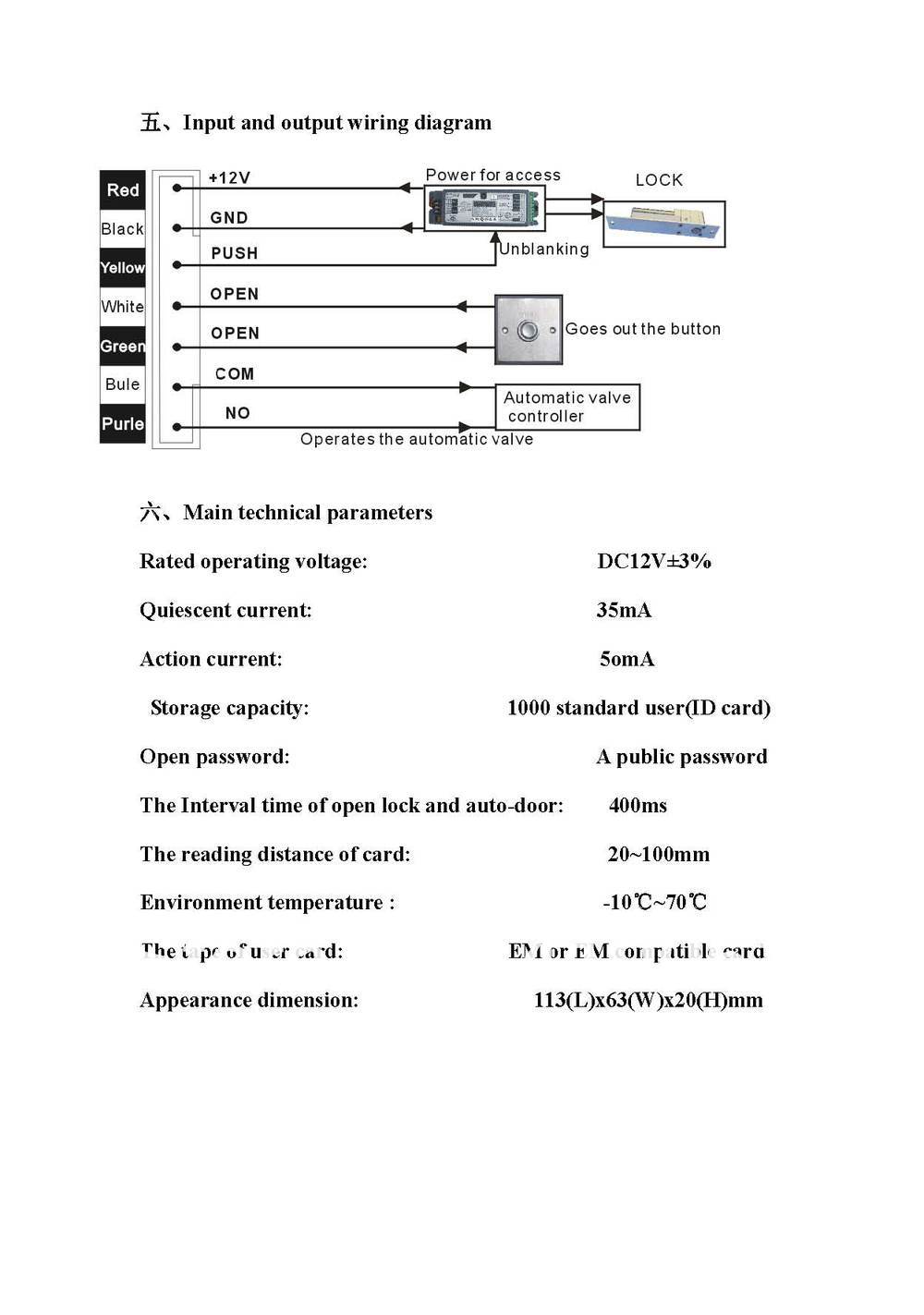

5-Input and output wiring diagram















6-Main technical parameters

Rated operating voltage:                     DC12V±3%

Quiescent current:                          35mA

Action current:                             5omA

 Storage capacity:                  1000 standard user(ID card)

Open password:                            A public password

The Interval time of open lock and auto-door:    400ms

The reading distance of card:                  20~100mm

Environment temperature :                   -10C~70C

The tape of user card:               EM or EM compatible card

Appearance dimension:                113(L)x63(W)x20(H)mm







The door access control designed for office buildings, offices, residential, security systems, building access and other access control , reader, can enter the password, you can control power locks, automatic doors can also be controlled. Read Range:> 10CM Working temperature: -30 º C -70 º C

Rated voltage: DC 12V working current best: 150mA Quiescent Current: 90mA Operating humidity :0-95//

Dimensions: 113 (length) * 63 (W) * 20 (H) mm

1 can be set to 250 cards, arbitrarily set four passwords: 2. Reader or password, contact signal output directly, it can automatically unlock or open automatic doors: 3. Reader power, distance not less than 10CM: 4. operation use concise, cards Increase flexibility and can be used offline to delete the card: 5 with relay normally open normally closed output.

6 compact appearance, stable performance, easy installation, beautiful and practical. 7 The latest streamlined shape, fashionable and stylish.







Packaging Details

Unit Type:
piece
Package Weight:
0.300kg (0.66lb.)
Package Size:
11cm x 6cm x 6cm (4.33in x 2.36in x 2.36in)
